Surface Mount Temperature Sensor For Charging pile, charging station, charging gun and power packs

MFS Series temperature sensor, easy to install and fixed to the surface of measured subject by screw, which is widely used in energy storage batteries, charging piles, charging stations, charging guns,OBC Charger and power packs, also is used in heating plate of coffee machine, bottom of coffee pot, ovenware and so on. Millions of units have been mass-produced to prove its superior performance, stability and reliability. They can meet the requirements of measuring temperature and overheating protection which for a better protection of machine.

■ A glass-encapsulated thermistor is sealed into a lug terminal, Easy to install, size can be customized
■ Proven long term Stability and Reliability , Excellent performance of voltage resistance
■ High Sensitivity and Fast thermal response, Moisture and high temperature resistance
■ Surface mountable and various mounting options
■ Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification
■ Products are in accordance with the RoHS, REACH certification

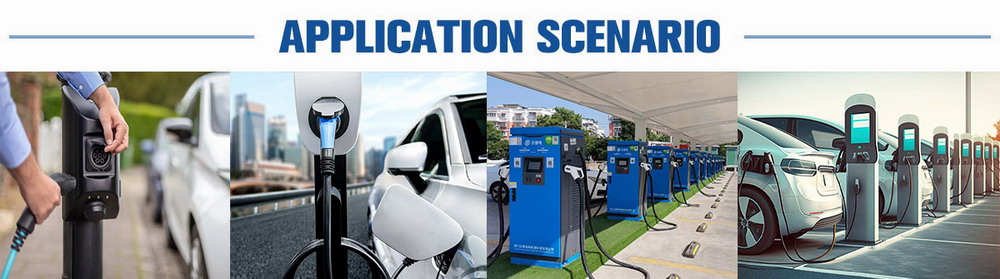

■ Charging pile, charging station, charging gun
■ Automobile BMS, Heat pump water heaters (surface)
■ Coffee machine, Heating plate, Ovenware
■ Air-conditioners outdoor units and heatsinks (surface)
■ Automobile inverters, evaporators, cooling systems
■ Water heater tanks and OBC Charger, BTMS,

1. Recommendation as follows:
R25℃=10KΩ±1% B25/50℃=3950K±1% or
R25℃=15KΩ±3% B25/50℃=4150K±1% or
R25℃=100KΩ±1%, B25/50℃=3950K±1%
2. Working temperature range:
-30℃～+105℃ or
-30℃～+150℃
3. Thermal time constant: MAX.15sec.( typical in stirred water )
4. Insulation voltage: 1800VAC,2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. PVC, XLPE or teflon cable is recommended
7. Connectors are recommended for PH, XH, SM, 5264 and so on
8. Above characteristics all can be customized
