Epoxy Coated NTC Thermistors MF5A-2/3 Series

Short Description:

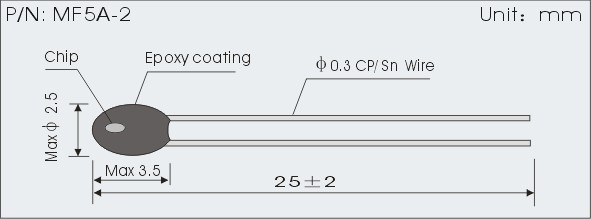

MF5A-2 This epoxy encapsulated thermistor is cost effective and can be customized for lead length, and head size. Because it is suitable for high volume automated production, the external dimensions are well aligned.

Send email to us

Product Detail

Product Tags

Product Details

Place of Origin:	Hefei，China
Brand Name:	XIXITRONICS
Certification:	UL , RoHS , REACH
Model Number:	MF5A-2/3 series

Delivery & Shipping Terms

Minimum Order Quantity:	500 pcs
Packaging Details:	In Bulk , Plastic Bag Vacuum Packing
Delivery Time:	2-7 working days
Supply Ability:	5 Million Pieces Per month

Parameter Characteristics

R 25℃:	0.3KΩ-2.3 MΩ	B Value	2800-4200K
R Tolerance:	0.2%, 0.5%, 1%, 2%, 3%	B Tolerance:	0.2%, 0.5%, 1%, 2%, 3%

Features:

■ Low cost , Small size
■ Long term Stability and Reliability
■ High accuracy and Interchangeability
■ High Sensitivity and Fast thermal response
■ Thermally Conductive Epoxy coated

Applications

■ Temperature sensing , control and compensation
■ Assembly into various probes of Temperature sensors
■ Smart home or small appliance
■ General Instrumentation applications
■ Medical equipment and instruments
